The driver door power window motor is a specific type of power window motor that is located in the driver's door of a vehicle. It is responsible for controlling the movement of the driver's side window. The power window motor receives electrical signals from the power window switch on the driver door panel and uses the power from the vehicle's electrical system to raise or lower the window glass.
The driver door power window motor is typically larger and more powerful than the motors in the other doors, as it is often used more frequently. It is designed to provide smooth and reliable operation for the driver to easily control the movement of the window.

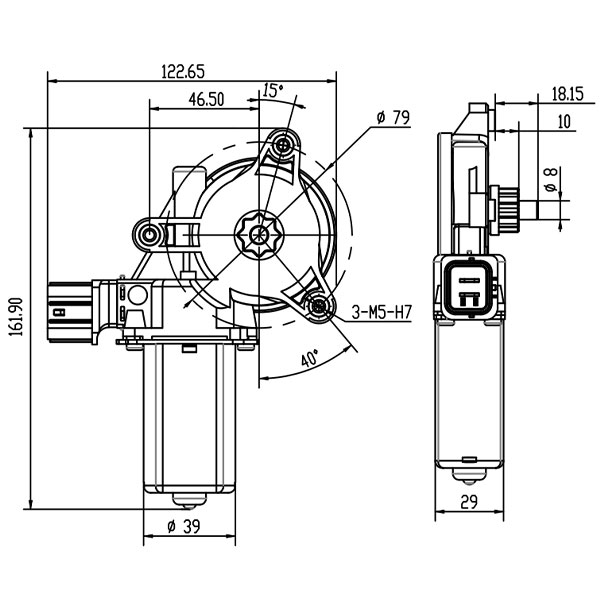

Appearance Shape and Size
Specification and Parameter
Rated Speed | 85±15 | rpm |
Noise | ≤55 | dB |
Power | 25 | w |
Rated Voltage | 12 | V |
Rated Torque | 2.94 | N-m |
No Load Current | ≤2 | A |
No Load Speed | ≥79 | rpm |
Rated Current | ≤10 | A |
Rated Speed | 65±15 | rpm |
Stall Current | ≤28 | A |
Stall Torque | 6.86 〜11.27 | N-m |
Noise | ≤55 | dB |
Power | 25 | w |
