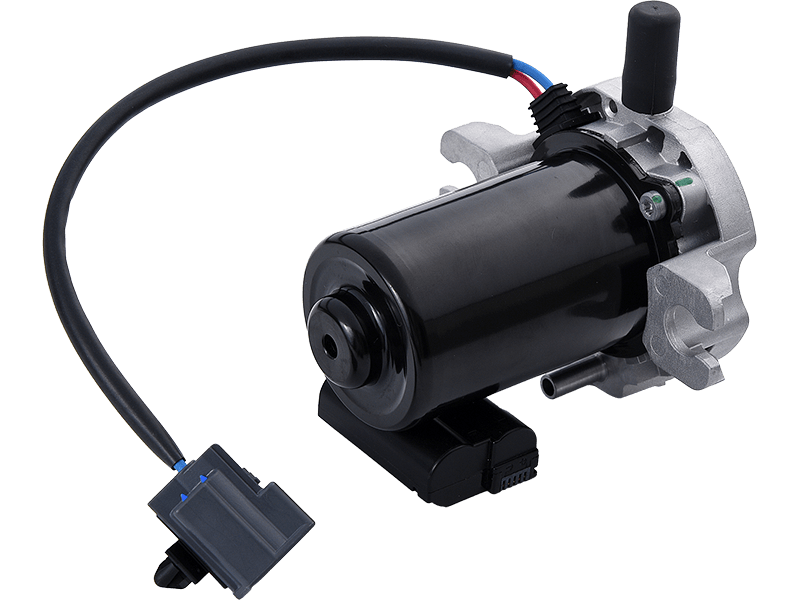

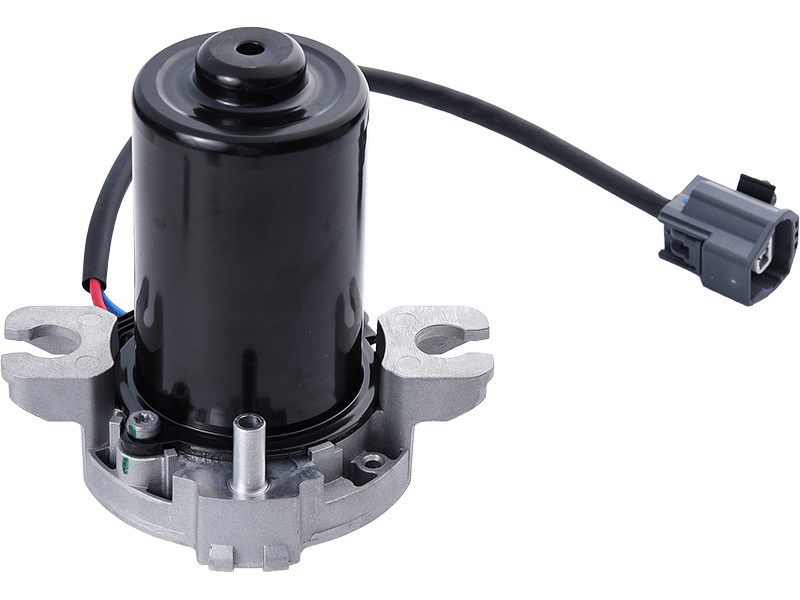

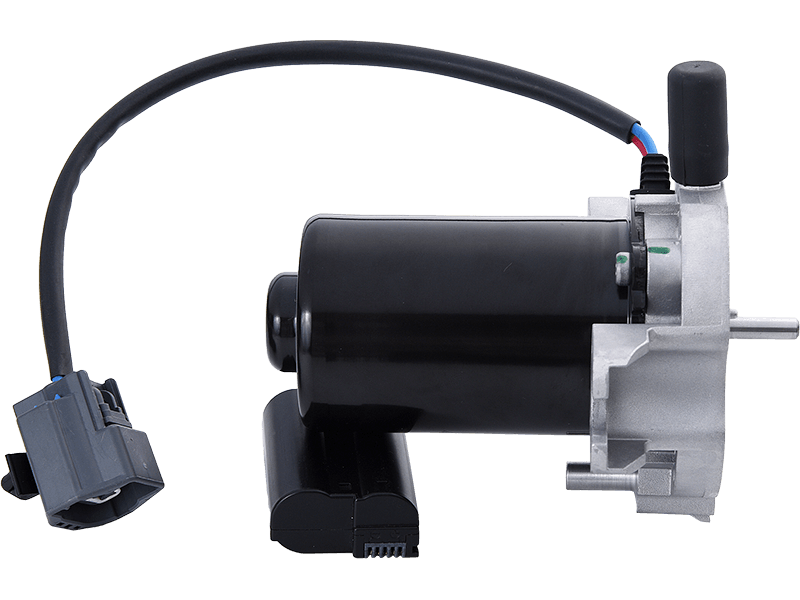

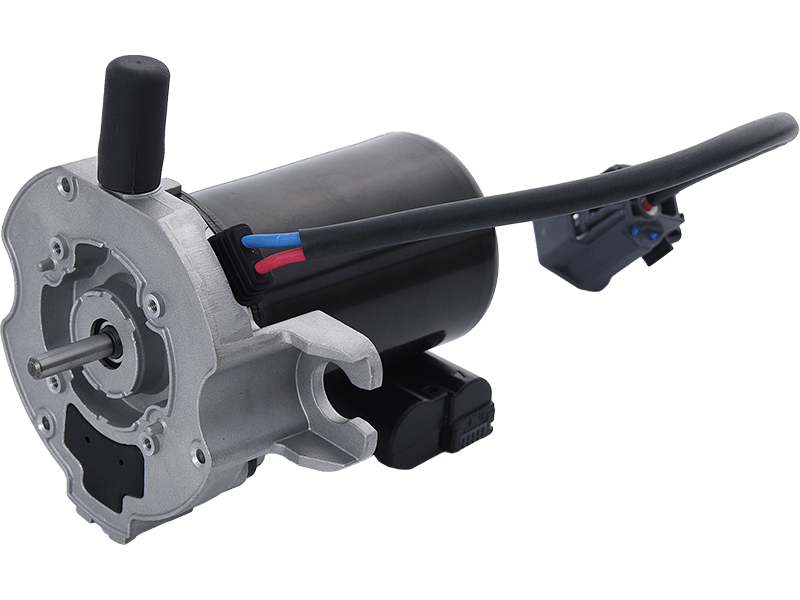

UP50 ABS Brake Pump Motor

What features are incorporated into the UP50 ABS Brake Pump Motor for optimal performance?
The UP50 ABS Brake Pump Motor is a critical component designed for optimal performance and efficiency. Various features are incorporated into the ABS brake pump motor to ensure it functions effectively within the ABS system.
The UP50 ABS Brake Pump Motor are designed with dual voltage capability, allowing them to operate at both 12V and 14V. This flexibility ensures compatibility with a wide range of automotive electrical systems, accommodating different vehicle models and electrical configurations. The dual voltage capability enhances the motor's adaptability and usability across various platforms.
The UP50 ABS Brake Pump Motor is engineered with precise torque control capabilities. This feature ensures that the motor can deliver the required torque consistently, contributing to the effective operation of the brake booster pump. Precise torque control is crucial for maintaining optimal braking performance and responsiveness, especially during emergency braking situations.
To enhance overall energy efficiency, the UP50 ABS Brake Pump Motor is designed to operate with low no-load current. The no-load current specification, often ≤2.0A, signifies that the motor consumes minimal power when not actively engaged in pumping brake fluid. This efficiency not only conserves energy but also reduces the strain on the vehicle's electrical system.
The motor is equipped with stall current and stall torque limitations to ensure its durability and reliability under extreme conditions. The specified stall current (≤95A) represents the maximum current the motor draws when subjected to a stall condition, while the stall torque (≤2.0N.m) signifies the maximum torque it can generate under such conditions. These limitations prevent the motor from being overloaded, contributing to its long-term reliability.

How does the UP50 ABS Brake Pump Motor function within the ABS system?
The UP50 ABS Brake Pump Motor plays a crucial role in the overall functionality of the ABS system, contributing to improved vehicle safety and control during braking.
Braking Action Initiation:When a driver applies the brakes, the ABS system initiates its operation. The wheel speed sensors detect the deceleration of the wheels.
Detection of Wheel Lock-Up:The ABS control unit continuously monitors the speed of each wheel. If it detects that a wheel is decelerating too rapidly, indicating an imminent lock-up, it intervenes to prevent it.
ABS Control Unit Intervention:Upon detecting a potential wheel lock-up, the ABS control unit sends signals to the hydraulic control unit to modulate brake pressure. It also activates the ABS brake pump motor.
ABS Brake Pump Motor Activation:The UP50 ABS Brake Pump Motor starts running, pressurizing the brake fluid in the hydraulic control unit. This pressurized fluid is then used to release and reapply brake pressure rapidly, preventing the wheel from fully locking up.
Valve Operation in the Hydraulic Control Unit:The HCU valves, under the command of the ABS control unit, open and close rapidly. These valves control the flow of brake fluid to the brake calipers or wheel cylinders.
Pulsating Brake Pressure:The rapid opening and closing of the valves, along with the assistance of the UP50 ABS Brake Pump Motor, create a pulsating effect in the brake lines. This pulsation prevents the wheel from completely locking up, allowing the driver to maintain steering control during heavy braking.
Wheel Speed Monitoring and Adjustments:The ABS control unit continues to monitor wheel speeds and adjusts brake pressure as needed. This process occurs in milliseconds, allowing for real-time adjustments to prevent wheel lock-up while optimizing braking performance.
Return to Normal Braking:Once the ABS control unit determines that the risk of wheel lock-up has been mitigated, it allows normal braking to resume. The UP50 ABS Brake Pump Motor stops running, and the system returns to regular brake operation.
